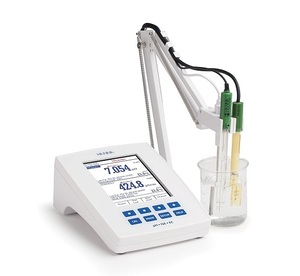

HI5522-02 Hanna Instruments pHметр ISEметр EC-метр
Get reliable measurements with our most advanced benchtop pH meter.
This benchtop pH meter is the essential tool for any lab. Rich in features and completely customizable to user specific requirements, the HI5522 delivers precision and performance for the most demanding user.
Save on calibration solutions when you bundle!
Compact design to fit onto any lab benchtop.
Two channels for simultaneous measurements to maximize your testing time.
Great for laboratory and professional use.
Таблица характеристик
pH Specifications
pH Range -2.000 to 20.000 pH
pH Resolution 0.1, 0.01, 0.001 pH
pH Accuracy (@25?C/77?F) ±0.1 pH, ±0.01 pH, ±0.002 pH ±1 LSD
pH Calibration automatic, up to five point calibration, eight standard buffers available (1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01,12.45) and five custom buffers
pH Temperature Compensation automatic or manual from -20.0 to 120.0 °C
mV Range ±2000 mV
mV Resolution 0.1 mV
mV Accuracy ±0.2 mV ±1 LSD
Relative mV Offset Range ±2000 mV
EC Specifications
EC Range 0.000 to 9.999 ?S/cm, 10.00 to 99.99 ?S/cm, 100.0 to 999.9 ?S/cm, 1.000 to 9.999 mS/cm, 10.00 to 99.99 mS/cm, 100.0 to 1000.0 mS/cm actual EC*
EC Resolution 0.001 ?S/cm, 0.01 ?S/cm, 0.1 ?S/cm, 1 ?S/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
EC Accuracy (@25?C/77?F) ±1% of reading (±0.01 ?S/cm)
EC Calibration automatic standard recognition (0.000 ?S/cm, 84.00 ?S/cm, 1.413 mS/cm, 5.000 mS/cm, 12.88 mS/cm, 80.00 mS/cm, 111.8 mS/cm) or user standard single point or multi-point calibration
TDS Specifications
TDS Range 0.000 to 9.999 ppm, 10.00 to 99.99 ppm, 100.0 to 999.9 ppm, 1.000 to 9.999 ppt, 10.00 to 99.99 ppt, 100.0 to 400.0 ppt actual TDS* (with 1.00 factor)
TDS Resolution 0.001 ppm, 0.01 ppm, 0.1 ppm, 1 ppm, 0.001 ppt, 0.01 ppt, 0.1 ppt
TDS Accuracy (@25?C/77?F) ±1% of reading (±0.01 ppm)
Resistivity Specifications
Resistivity Range 1.0 to 99.9 ?•cm 100 to 999 ?•cm 1.00 to 9.99 K?•cm 10.0 to 99.9 K?•cm 100 to 999 K?•cm 1.00 to 9.99 M?•cm 10.0 to 100.0 M?•cm
Resistivity Resolution 0.1 ?•cm 1 ?•cm 0.01 K?•cm 0.1 K?•cm 1 K?•cm 0.01 M?•cm 0.1 M?•cm*
Resistivity Accuracy ±2% of reading (±1 ?•cm)
Salinity Specifications
Salinity Range practical scale: 0.00 to 42.00 psu natural seawater scale: 0.00 to 80.00 ppt percent scale: 0.0 to 400.0%
Salinity Resolution 0.01 for practical scale/natural seawater scale 0.1% for percent scale
Salinity Accuracy (@25?C/77?F) ±1% of reading
Salinity Calibration percent scale—one-point (with HI7037 standard)
Temperature Specifications
Temperature Range -20.0 to 120.0 ?C** -4.0 to 248.0 ?F** 253.15 to 393.15 K**
Temperature Resolution 0.1 °C, 0.1 °F, 0.1 K
Temperature Accuracy ±0.2 °C ±0.4 °F ±0.2 K (without probe)
Temperature Compensation disabled, linear and non-linear (natural water)
Temperature Coefficient 0.00 to 10.00 %/°C
Reference Temperature 5.0 to 30.0 °C
ISE Specifications
ISE Range 1 x 10?? to 9.99 x 10?? concentration
ISE Resolution 1 0.1 0.01 0.001 concentration
ISE Accuracy @ 25 °C/77 °F ±0.5% (monovalent ions) ±1% (divalent ions)
ISE Calibration Points automatic, up to five point calibration, five fixed standard solutions available (0.1, 1, 10, 100, 1000 choice of concentration) and five user defined units
Additional Specifications
Cell Constant 0.0500 to 200.00
Cell Type 4 cells
Electrode/Probe HI1131B glass body pH electrode with BNC connector and 1 m (3.3’) cable (included) HI76312 platinum, four-ring EC/TDS probe with and 1 m (3.3’) cable (included)
Temperature Probe HI7662-T stainless steel temperature probe with 1 m (3.3’) cable (included)
Profiles up to 10, 5 each channel
USP ?645? Compliant yes
GLP calibration data including date, time, buffers used, offset and slope for pH. Cell constant, reference temperature, temperature coefficient, calibration points, calibration time stamp, probe offset for conductivity
Logging record: 100,000 data point storage, up to 100 lots with max. 50,000 records/lot interval: settable between 1 second and max log time of 180 minutes type: automatic, manual, AutoHOLD additional: 200 records USP
Input Channels 1 pH/ORP/ISE + 1 EC/TDS/Salinity/Resistivity
Display color graphic LCD with on-screen help, graphing, and custom color configuration
Connectivity USB
Environment 0 to 50°C (32 to 122°F 273 to 323 K), RH max 95% non-condensing
Power Supply 12 VDC adapter (included)
Dimensions 160 x 231 x 94 mm (6.3 x 9.1 x 3.7”)
Weight 1.2 kg (2.64 lbs.)
Ordering Information HI5522-02 Hanna Instruments pHметр ISEметр EC-метр is supplied with HI1131 pH electrode, HI7662-T temperature probe, HI76312 conductivity probe, HI76404W electrode holder, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachet (2), HI7082 3.5M KCl electrolyte solution (30 mL), 12 VDC power adapter and instructions.
Warranty 2 years (probe 6 months)
Notes *Uncompensated conductivity (or TDS) is the conductivity (or TDS) value without temperature compensation. **Reduced to actual probe limits
