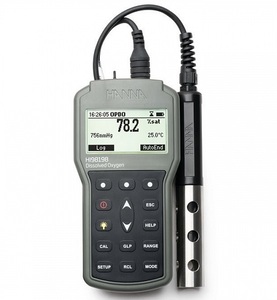

HI98198 Hanna Instruments портативный оксиметр
Oxygen, Dissolved Measurement Type
Optical
Oxygen, Dissolved Range
0.00 to 50.00 mg/L / 0.0 to 500.0% saturation
Oxygen, Dissolved Resolution
0.01 mg/L / 0.1% saturation
Oxygen, Dissolved Accuracy
1.5% of reading ± 0.01mg/L for 0.00?20.00mg/L
5% of reading for 20.00?50.00mg/L
1.5% of reading ±0.1% for 00?200.0%
5% of reading for 200.0?500.0%
Oxygen, Dissolved Calibration
• One or two points automatic calibration at 100% (8.26 mg/L) and 0% (0 mg/L)
• Single point manual using a value entered by the user in % saturation or mg/L.
Oxygen, Dissolved Temperature Compensation
Automatic from ?5.0 to 50.0 °C (23.0 to 122.0 °F)
Barometric Pressure Compensation
Single point anywhere within pressure range
Salintiy Compensation
Automatic from 0 to 70 PSU (manually set)
Altitude Compensation
Automatic from 420 to 850 mmHg
Temperature Range ?5.0 to 50.0 °C (23 to 122 °F)
Temperature Resolution0.1 °C (0.1 °F)
Temperature Accuracy ±0.3 °C (±0.4 °F)
General Meter
DO Probe
HI764113 Optical Probe
Logging Type
On demand with 4000 records capability
Connectivity
USB-C Automatic Shut-Off
User selectable: 5, 10, 30, 60 minutes or disabled
GLP
Yes- includes last 5 calibrations
Calibration Timeout Reminder Yes- user selectable “Calibration due” warning
Autoend
Display LCD (back lighted display)
Battery Type / Life1.5V AA batteries (4 pcs.) / approx. 200 hours of continuous use without backlight (50 hours with backlight)
Environment 0 to 50 °C (32 to 122 °F) max. RH 100%
Dimensions 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight (with batteries) 450 g (15.9 oz)
Ordering Information
Each meter is supplied with: • HI764113 Optical DO probe with built?in temperature sensor, protective shield and 4 m (13’4) cable, HI764113?1 Smart Cap™ with o?ring, HI7040 Bicomponent Zero Oxygen Solution, Calibration/storage vessel, 100 mL plastic beaker (2 pcs.), 1 syringe with silicon grease, 1 lens wipe, 1.5V AA batteries (4 pcs.), Instruction manual, Meter quality certificate, Probe quality certificate, Cap quality certificate, USB Type A to C cable.
Warranty
HI98198 and HI764113: 2 years
HI764113?1: 1 year
